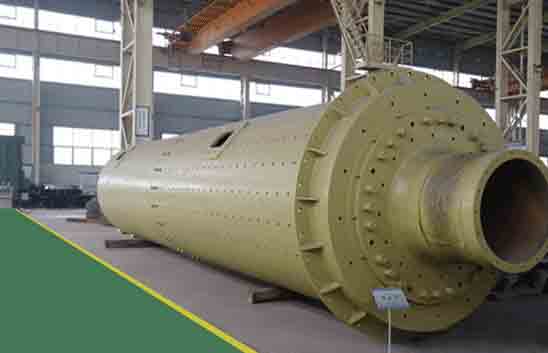

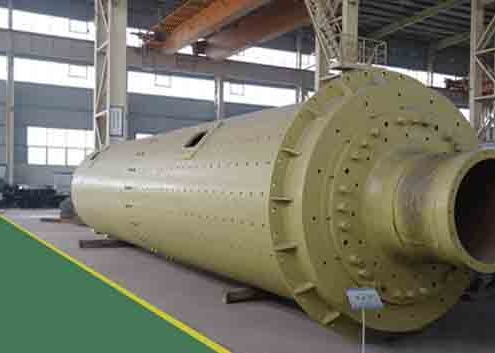

Ball mill

  • Cylinder Diameter:

    Φ1.5-Φ4.0m

  • Capacity:

    10-1000t/d

  • Motor Power:

    90-3300kw

  • Applicable material:

    Cement, slag, steel slag, nickel slag, coal and various mineral ore

Process description

Material is fed by the feeding device into the first chamber where material is impacted and crushed to a certain size by the grinding medium with average big diameter ball and then into the second chamber through the welt.
In it there are average small balls to further grind the material. After grinding, the material passing through the discharging grate plate and discharged out from the bottom of the discharging device, then selected by the matched separator, coarse powder will be ground again and qualified powder will become final product. Ball mill is composed of feeding device, feed and discharging sliding shoe bearing, transmission part, discharging device and sliding shoe bearing lubrication and central transmission device, for example, main reducer and lubrication device,main motor,slow drive device,etc.

Specifications

Model

Output

(t/d)

Ratate speed

(r/min)

Feed size

(mm)

Grinding

Media load
(t)

Effective

volume
(m3)

Drive mode

Motor

(kw)

Main

reducer

Weight

(t)

Φ2.4*13

21-23

20.30

25

65

51.7

Rim drive

800

JDX710

116

Φ2.6*13

21-38

19.61

25

75

60.0

Rim drive

1000

JDX800

149

Φ3.0*13

33-37

18.08

25

108

80.9

Rim drive

1400

JDX900

172.3

Φ3.2*13

45-50

18.04

25

128

92.4

Rim drive

1600

MBY1000

JDX1000

218

Φ3.2*13

48-52

18.04

25

138

99.8

Rim drive

1800

MBY1000

228

Φ3.4*13

45-50

18.00

25

115

94.0

Rim drive

1600

MBY1000

205

Φ3.5*13

55-60

17.00

25

160

111.2

Rim drive

2000

MBY1000

JDX1000

250

Φ3.8*13

66

16.40

25

195

129.3

Rim drive

2500

MFYX250

286

Φ4.0*13

80-85

15.50

25

235

155.0

Central drive

2800

JS140-A

220(without

transmission

 part)

Φ4.2*13

 (closed-circuit)

140-155

15.60

25

240

157.0

Central drive

3550

JS150-B

MFX355

287(without

transmission

 part)

Φ4.6*13

 (closed-circuit)

10-180

15.70

25

292

210.0

Central drive

4500

MFY450

346(without

transmission

 part)

Features

  • Advanced lathe, precised process technology
    LCDRI have few 5.3x18m heavy digital display horizontal lathe, can process high-precision cylinder to guarantee the no-circular rate and concentricity of slip ring processing to minimize the error. Cylinder is key-module for mill,carries on the finite element analysis with computer to ensure its reliability.
  • Various transmission way, compact structure
    Cylindrical mill adopts edge transmission, center drive, multipoint meshing transmission, etc. Type of drive have asynchronous motor, reducer, pinion, gear and synchronous motor, air clutch device, pinion, gear. Large and medium mill is equipped with slow drive device and high and low pressure lubrication station.
  • Advanced supporting way
    Generally adopts two ends static and dynamic pressure bearing supporting method, using completely closed 1200line contact “joystick”type bearing, which can also use single slipper, double slipper static and dynamic pressure way of support or total static pressure support.
  • American design criteria
    Large open gear adopts U.S.AGMA standard design and equipped with a reliable sealing of the gear cover and glycerol spray lubrication device, control and protection system adopts PLC control.
