Oil Sludge Treatment Plant

Oil-Sludge-Treatment-Plant

Product description

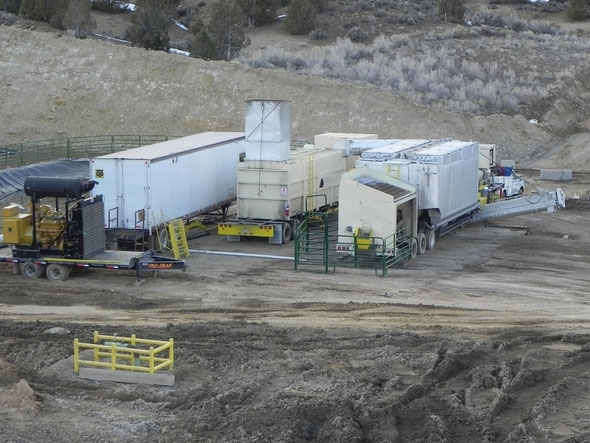

The oil sludge processing modular production process device provides a complete set of oil sludge ecological treatment solutions. The whole process can be used for gas phase, liquid phase and solid phase without leakage, no emission and complete recycling. It is a scientific environmental protection process. The process device realizes three-phase separation of sludge water. Skid-mounted design, 20-foot standard container combination, with a specification of 5 cubic meters per hour, 10 cubic meters per hour, meeting the relevant emission standards required by the state.

Main Components

A Oil Sludge Treatment Plant is made up of several Main components:

  • Oil Sludge Dry Distillation Skid Mounted
  • Oil Sludge Drying Treatment Skid Mounted
  • Water Treatment Skid Mounted
  • System Controlled Skid Mounted
  • Exhaust Gas Treatment Skid Mounted

CONTACT US

Address

22 Binhe North Road, Luoyang City, Henan, China

Contact

M/T: +86 379 64318689

M/P: +86 18237958898

E-mail:sales@lcdri.com

Oil sludge treatment plant Process

TechnicalProcess

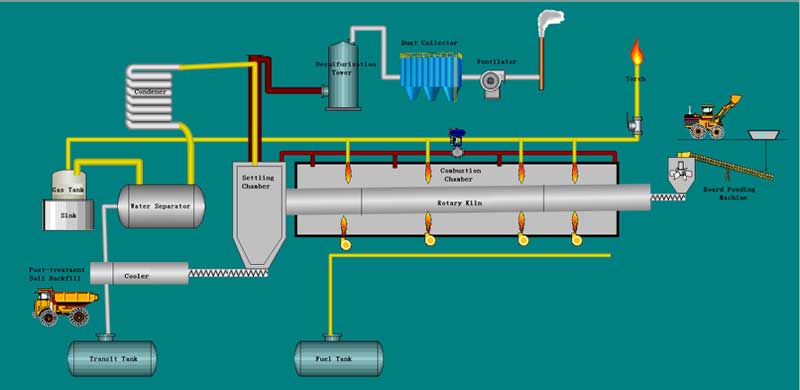

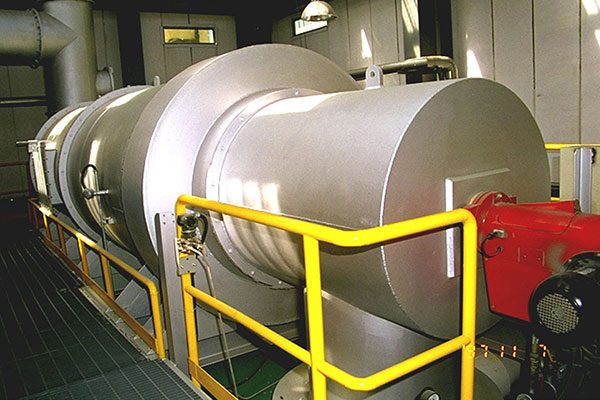

After the mobile sludge treatment device reduces the production of oily sludge, the mud cake is pretreated by sieving, transported by auger, and then evaporatively separated from the feed hopper into the pyrolysis dry distillation furnace. The pyrolysis dry distillation furnace is A rotary rotary kiln with a hot air passage outside, and high-temperature hot air in the passage provides heat for sludge evaporation. The hot air passage is connected to the burner, and the burner is burned inside the combustion chamber.

The oily sludge is moved from one end to the other under the action of continuously turning in the dry distillation furnace to complete the heating process. During the heating process, the volatile organic matter in the material is volatilized by heat to form an oil and gas mixture, which is discharged into the condensation chamber from the tail portion of the dry distillation furnace, and the solid dry residue material that has reached the standard after evaporation is discharged from the lower end of the tailing of the dry distillation furnace.

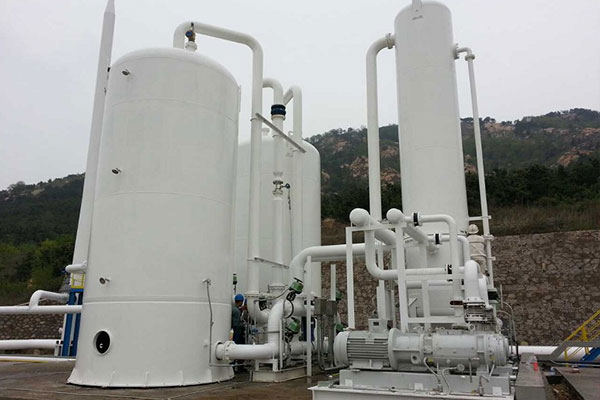

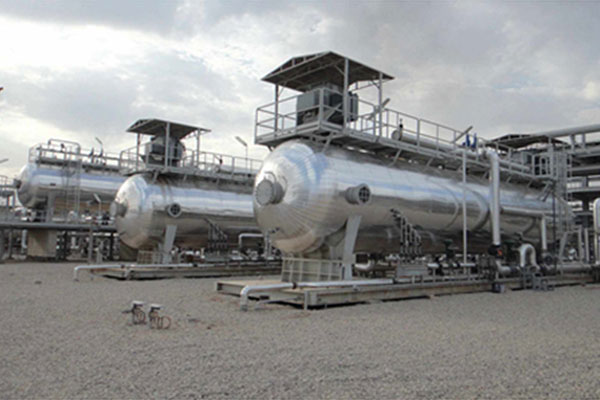

The oil and gas condensation recovery unit is mainly carried out in the spray tower. In the spray tower, the oil and gas mixture is in direct contact with the sprayed low-temperature condensate, and the majority of the oil and gas is condensed. The formed oil-water mixture is discharged into the subsequent oil-water separation unit, and a small amount of non-condensable gas is sprayed into the burner as a combustion-supporting gas by the spray washing gas to reduce the amount of natural gas, thereby reducing part of the running cost. In the oil-water separation unit, the oil is dewatered by the first grade sloping plate, the second-stage condensate filter is degreased, and the oil is floated and degreased.

The oil content in the water drops below 10 ppm. After the deoiled water is cooled by the air cooler, it is circulated into the spray tower for spraying, and the light oil separated from the unit is stored in a recovery tank. A small amount of water is generated during the oil-water separation process, and is used as humidifying water after microfiltration according to requirements, and is used for humidifying and cooling the solid discharge or discharging the heavy metal to be harmlessly treated, and the whole process has no external sewage.

Application Area and Scope

√ Floor Oil Sludge

√ Tank Bottom Oil Sludge

√ Drill Cuttings / Drilling Mud

The treated sludge oil content is <2%, which meets environmental protection requirements.

  1. It is mainly used for the harmless treatment of oil sludge produced in the petroleum and chemical fields. The slag treated by this system can meet the requirements of brick making, road repairing and landfilling;
  2. The oil sludge produced in the petroleum and petrochemical fields includes: oil sludge from the gathering station of the oil production plant, oil sludge after centrifugal reduction, oil sludge with low water content in the oil sludge pool, oil-based cuttings generated by drilling, landing Mud, refinery oil sludge and mud;
  3. Can be used in chemical, printing and dyeing, gas chemical, garbage treatment and other fields in the slag treatment, so that solid waste discharge standards.

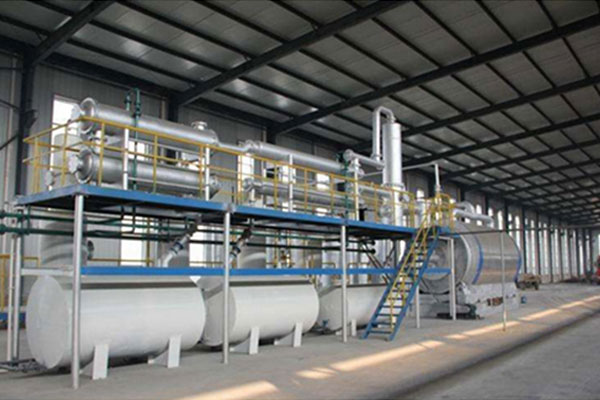

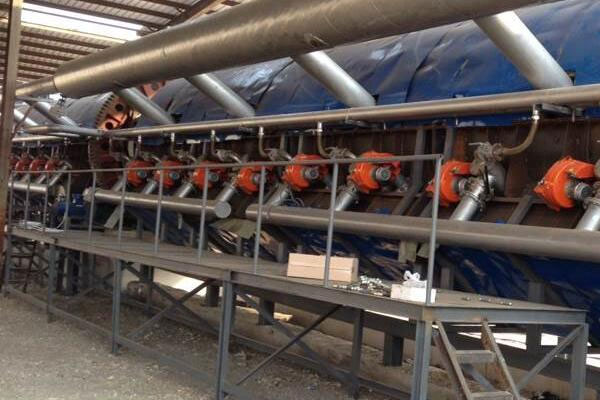

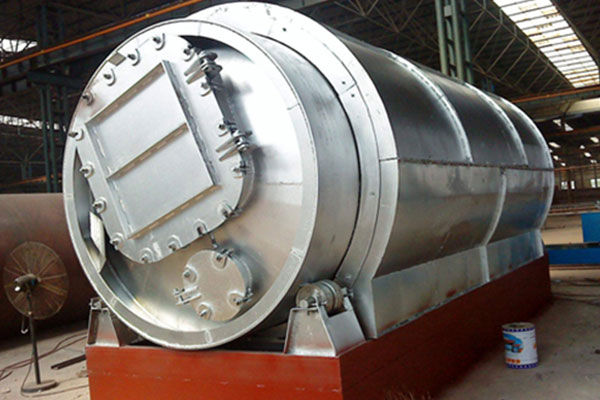

Oil Sludge Rotary Kilns Technological Advantages

  1. Armored modular design for quick installation and transportation;
  2. A wide range of applications: suitable for processing a variety of oily waste, tank bottom sludge, oil sludge sludge oil sands, oil-based cuttings and so on. It can also be used for soil remediation, organochlorine pesticides, polychlorinated biphenyls, furans, pharmaceutical and chemical solid waste treatment. It can also be applied to the disposal of waste tires, waste plastics, and waste paints;
  3. The thermal desorption system can be continuously and uninterrupted, the processing capacity can reach 3 to 15 tons per hour. The treated solid oil content can be less than 0.3%, meeting the most stringent environmental requirements in China;
  4. Self-cleaning screw pusher design, can meet the continuous processing of high viscosity materials, reducing cleaning and maintenance time;
  5. The system uses a variety of sensors, PLC intelligent operating system to achieve fully automatic and efficient control;
  6. Advanced gas dust removal technology, dust removal treatment before hot steam condensation, effectively reducing the solid content of the condensate, thereby reducing the processing cost;
  7. Comprehensive utilization of tailings to achieve value enhancement;
  8. The equipment is operated under negative pressure and is safe and reliable;
  9. The recycled water is reused, the sales of the recovered oil is appreciated, and the emitted gas is environmentally friendly, and there is no waste discharge. The entire pyrolysis system achieves zero emissions.
